Performance Testing
Optical Spectrum Testing
This test checks whether the central wavelength of the optical module meets standard specifications to ensure consistent quality.
Test Items
-
Central wavelength
-
Side mode suppression ratio (SMSR)
-
Spectral Width

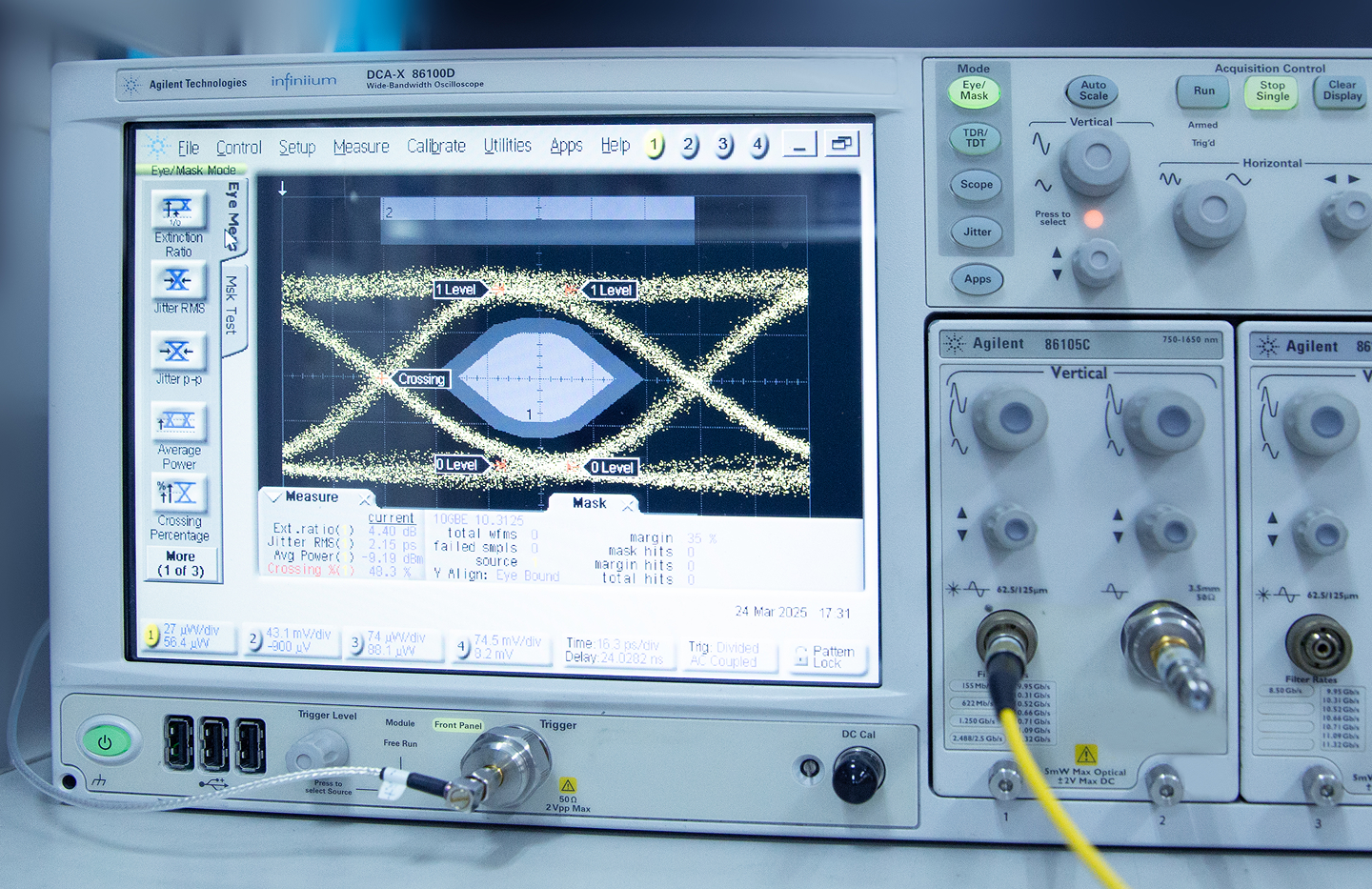

Eye Diagram Testing
This test involves analyzing the eye diagram to assess the performance of the optical module and ensure signal integrity quality.
Test Items
-
Average Optical Power
-
Extinction Ratio
-
Eye Margin

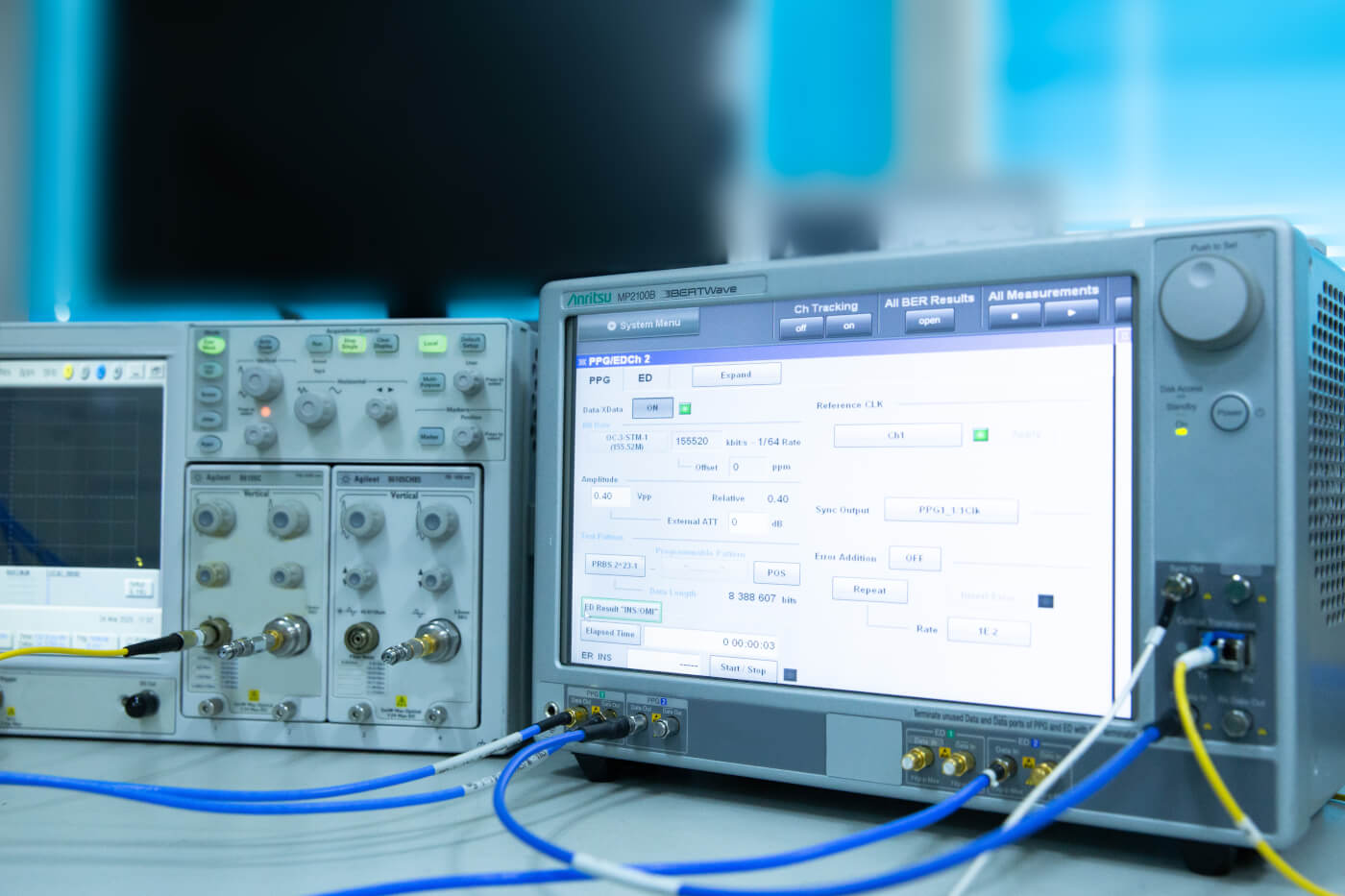

Bit Error Rate (BER) & Receiver Sensitivity Testing
This test uses the PRBS31 standard pattern to measure the bit error rate and receiver sensitivity, verifying the optical module's performance and ensuring transmission stability.
Test Items
-
Bit error rate (BER)
-
Packet Loss
-
Receiver Sensitivity

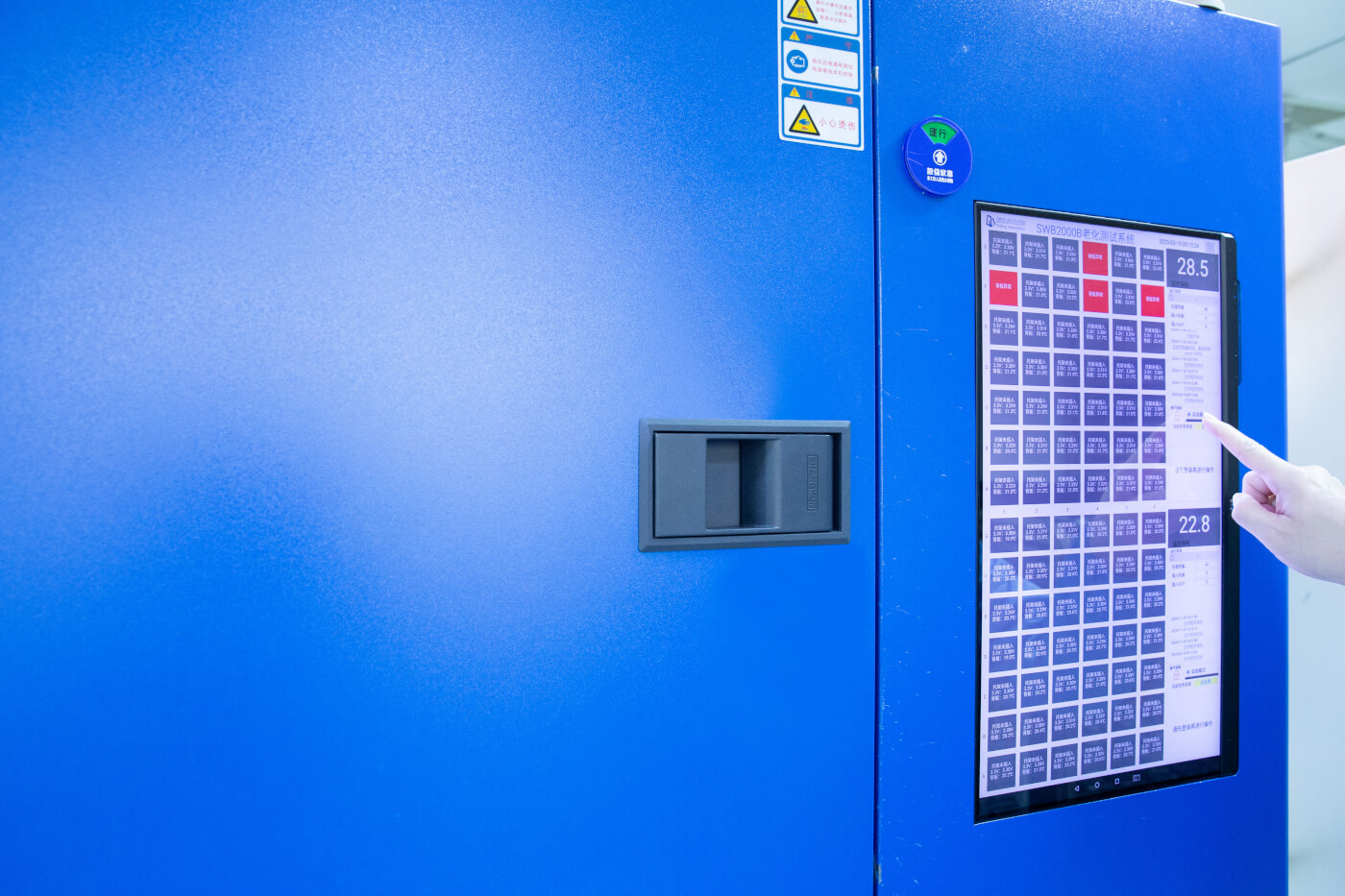

Temperature Testing
This test involves conducting the above performance evaluations under different temperature settings to assess the reliability of the optical module.
Test Items
-
-40°C
-
0°C
-
25°C
-
70°C
-
85°C
