10G SFP+

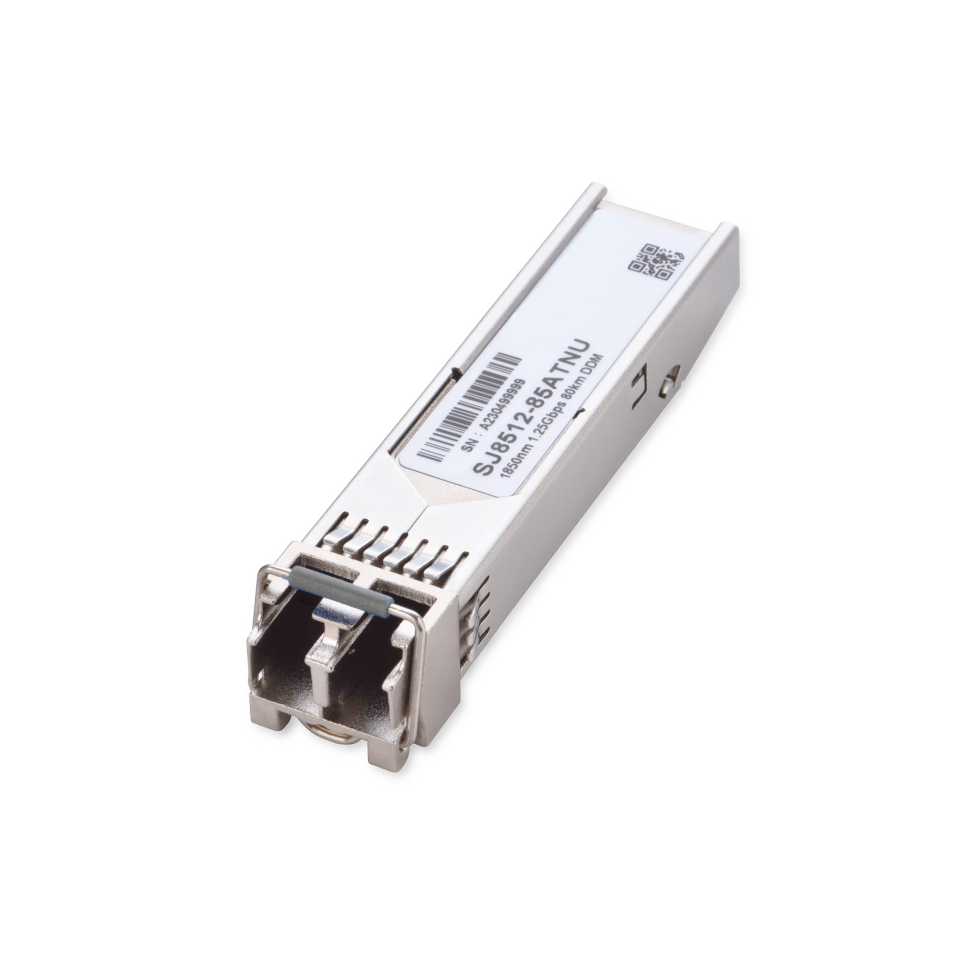

OPTICAL TRANSCEIVER SFP+/SFP28 Optical Transceiver

SANOC的10G SFP+收發器適用於10G以太網和光纖通道連接。它們符合IEEE802.3ae、SFF-8472、SFF-8431、SFF-8461、CE和RoHS標準。所有收發器都經過優化，以提供最佳性能和廣泛的兼容性。這些10G SFP+模組提供SR、LR、LRM、ER、ZR和EZR版本。

Part Number

SY85A0-X3ATXX-ET

SY85A0-X3ATXX-WT

SY13A0-10ATXX-WT

SY13A0-20ATXX-WT

SY13A0-40ATXX-ET

Quantity

Specification

Part Number	Data Rate	Distance	Wavelength	Connector	Output Power	Sensitivity	Temperature	Remark
SY85A0-X3ATXX-ET	10G	300m	850nm	LC DDM	-1 to -7 dBm	-9.9 dBm	-10 ~ 85°C
SY85A0-X3ATXX-WT	10G	300m	850nm	LC DDM	-1 to -7 dBm	-9.9 dBm	-40 ~ 85°C
SY13A0-10ATXX	10G	10km	1310nm DFB	LC DDM	0.5 to -8.2 dBm	-14.5 dBm	0 ~ 70°C
SY13A0-10ATXX-WT	10G	10km	1310nm DFB	LC DDM	0.5 to -8.2 dBm	-14.5 dBm	-40 ~ 85°C
SY13A0-20ATXX	10G	20km	1310nm DFB	LC DDM	1 to -5 dBm	-14.4 dBm	0 ~ 70°C
SY13A0-20ATXX-WT	10G	20km	1310nm DFB	LC DDM	1 to -5 dBm	-14.4 dBm	-40 ~ 85°C
SY13A0-40ATXX	10G	40km	1310nm DFB	LC DDM	4 to 0 dBm	-16 dBm	0 ~ 70°C
SY13A0-40ATXX-ET	10G	40km	1310nm DFB	LC DDM	5 to 0.5 dBm	-14.5 dBm	-20 ~ 85°C
