2.5G SFP

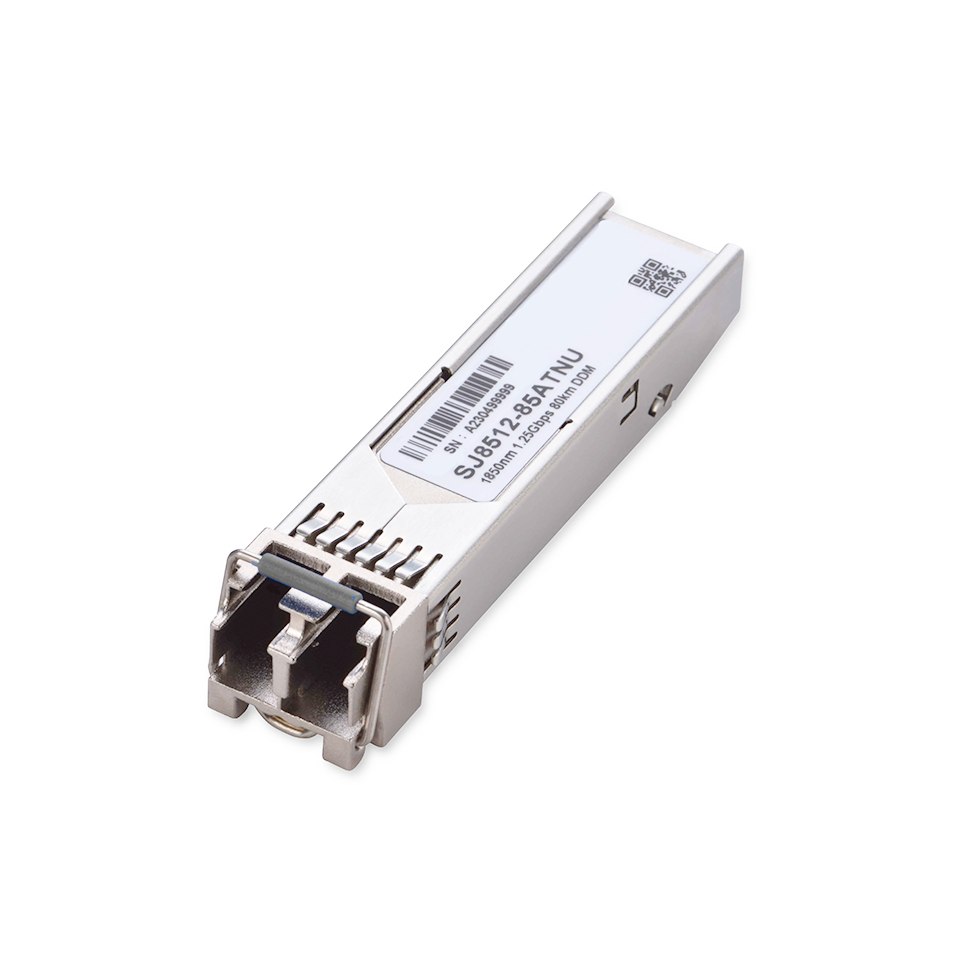

OPTICAL TRANSCEIVER SFP Optical Transceiver

SANOC 2.5G SFP收發器是針對SONET OC-48、SDH STM-16（2488 Mbps）應用的行業標準小型可插拔模組。這些SFP模組符合SFP MSA、CE、FCC、Reach和RoHS標準。我們提供各種適用於不同場景的2.5G SFP，包括工業和商業網絡。

Part Number

SJ8525-X3ATXX-WT

SJ1325-02ATXX-WT

SJ1325-15ATXX-WT

SJ1325-40ATXX-WT

SJ1525-40ATXX-ET

SJ1525-80ATXX-ET

SJ1525-00ATXX-WT

SJ1525-12ATXX-ET

SJ1525-16ATXX-ET

Quantity

Specification

Part Number	Data Rate	Distance	Wavelength	Connector	Output Power	Sensitivity	Temperature	Remark
SJ8525-X3ATXX	2.5G	300 m	850 nm	LC SFP DDM	-3 to -9 dBm	-17 dBm	0 ~ 70°C
SJ8525-X3ATXX-WT	2.5G	300 m	850 nm	LC SFP DDM	-2.5 to -9 dBm	-15 dBm	-40 ~ 85°C
SJ1325-02ATXX	2.5G	2 km	1310 nm	LC SFP DDM	-3 to -9 dBm	-18 dBm	0 ~ 70°C
SJ1325-02ATXX-WT	2.5G	2 km	1310nm	LC SFP DDM	-3 to -9.5 dBm	-18 dBm	-40 ~ 85°C
SJ1325-15ATXX	2.5G	15 km	1310 nm DFB	LC SFP DDM	0 to -5 dBm	-18 dBm	0 ~ 70°C
SJ1325-15ATXX-WT	2.5G	15 km	1310 nm DFB	LC SFP DDM	0 to -5 dBm	-20 dBm	-40 ~ 85°C
SJ1325-40ATXX	2.5G	40 km	1310 nm DFB	LC SFP DDM	3 to -2 dBm	-28 dBm	0 ~ 70°C
SJ1325-40ATXX-WT	2.5G	40 km	1310nm DFB	LC SFP DDM	3 to -2 dBm	-28 dBm	-40 ~ 85°C
SJ1525-40ATXX	2.5G	40 km	1550nm DFB	LC SFP DDM	3 to -2 dBm	-20 dBm	0 ~ 70°C
SJ1525-40ATXX-ET	2.5G	40 km	1550 nm DFB	LC SFP DDM	3 to -2 dBm	-20 dBm	-20 ~ 85°C
SJ1525-80ATXX	2.5G	80 km	1550nm DFB	LC SFP DDM	3 to -2 dBm	-28 dBm	0 ~ 70°C
SJ1525-80ATXX-ET	2.5G	80 km	1550 nm DFB	LC SFP DDM	3 to -2 dBm	-28 dBm	-20 ~ 85°C
SJ1525-00ATXX	2.5G	100 km	1550 nm DFB	LC SFP DDM	5 to 0 dBm	-28 dBm	0 ~ 70°C
SJ1525-00ATXX-WT	2.5G	100 km	1550nm DFB	LC SFP DDM	5 to 0 dBm	-28 dBm	-40 ~ 85°C
SJ1525-12ATXX	2.5G	120 km	1550 nm DFB	LC SFP DDM	6 to 1 dBm	-30 dBm	0 ~ 70°C
SJ1525-12ATXX-ET	2.5G	120 km	1550 nm DFB	LC SFP DDM	5 to 0 dBm	-30 dBm	-20 ~ 85°C
SJ1525-16ATXX	2.5G	160 km	1550nm DFB	LC SFP DDM	8 to 5 dBm	-30 dBm	0 ~ 70°C
SJ1525-16ATXX-ET	2.5G	160 km	1550 nm DFB	LC SFP DDM	6 to 3 dBm	-32 dBm	-20 ~ 85°C
