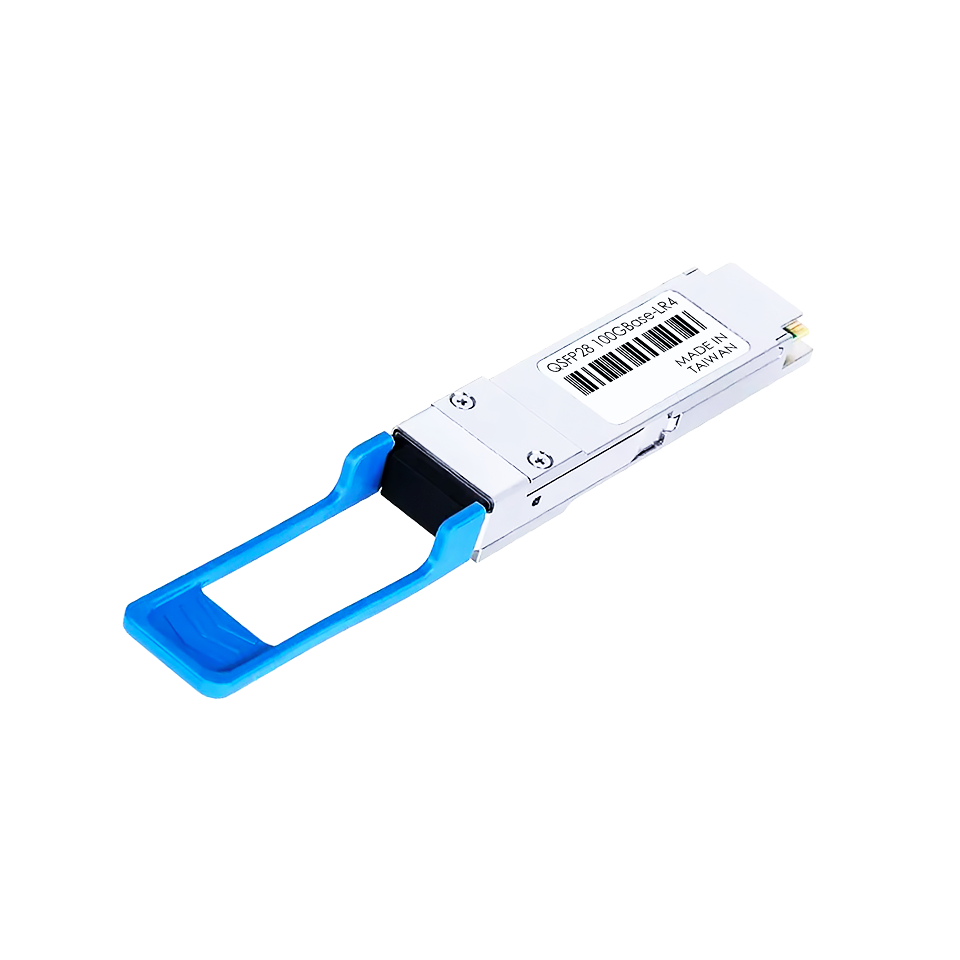

100G QSFP28

OPTICAL TRANSCEIVER 40G-800G Optical Transceiver

100G QSFP28

Part Number

SQ85J0-X1ATXX-SR4

SQ13J0-02ATXX-WT

SQ13J0-10ATXX-WT

SQ13J0-40ATXX-ER4

SQ13J0-40ATXX-ER4-WT

SQ13J0-80ATXX-ZR4

SQ13J0-80ATXX-ZR4-WT

SQ13J0-00ATXX-ZR4

SQ13J0-X5ATXX-DR1

SQ13J0-02ATXX-FR1

SQ13J0-10ATXX-LR1

SQ85J0-X2ATXX-SWDM4

Quantity

Specification

Part Number	Data Rate	Distance	Wavelength	Connector	Output Power	Sensitivity	Temperature	Remark
SQ85J0-X1ATXX-SR4	100G	100m	850nm				0~70°
SQ13J0-02ATXX-WT	100G	2km	CWDM4				-40~85°
SA89J0-X1ATXX	100G	100m	850/910nm				0~70°
SQ13J0-10ATXX	100G	10km	Lan-WDM				0~70°
SQ13J0-10ATXX-WT	100G	10km	Lan-WDM				-40~85°
SQ13J0-40ATXX-ER4	100G	40km	Lan-WDM				0~70°
SQ13J0-40ATXX-ER4-WT	100G	40km	Lan-WDM				-40~85°
SQ13J0-80ATXX-ZR4	100G	80km	Lan-WDM				0~70°
SQ13J0-80ATXX-ZR4-WT	100G	80km	Lan-WDM				-40~85°
SQ13J0-00ATXX-ZR4	100G	100km	Lan-WDM				0~70°
SQ13J0-X5ATXX-DR1	100G	500m	1310nm				0~70°
SQ13J0-02ATXX-FR1	100G	2km	1310nm				0~70°
SQ13J0-10ATXX-LR1	100G	10km	1310nm				0~70°
SA27J0-10ATXX	100G	10km	1271nmTX/1331nmRX				0~70°
SA33J0-10ATXX	100G	10km	1331nmTX/1271nmRX				0~70°
SA29J0-10ATXX	100G	10km	1291nmTX/1311nmRX				0~70°
SA31J0-10ATXX	100G	10km	1311nmTX/1291nmRX				0~70°
SA04J0-20ATXX	100G	20km	1304.58nmTX/1309.14nmRX				0~70°
SA09J0-20ATXX	100G	20km	1309.14nmTX/1304.58nmRX				0~70°
SQ85J0-X2ATXX-SWDM4	100G	150m	SWDM4				0~70°
