聖威光電 - 產品

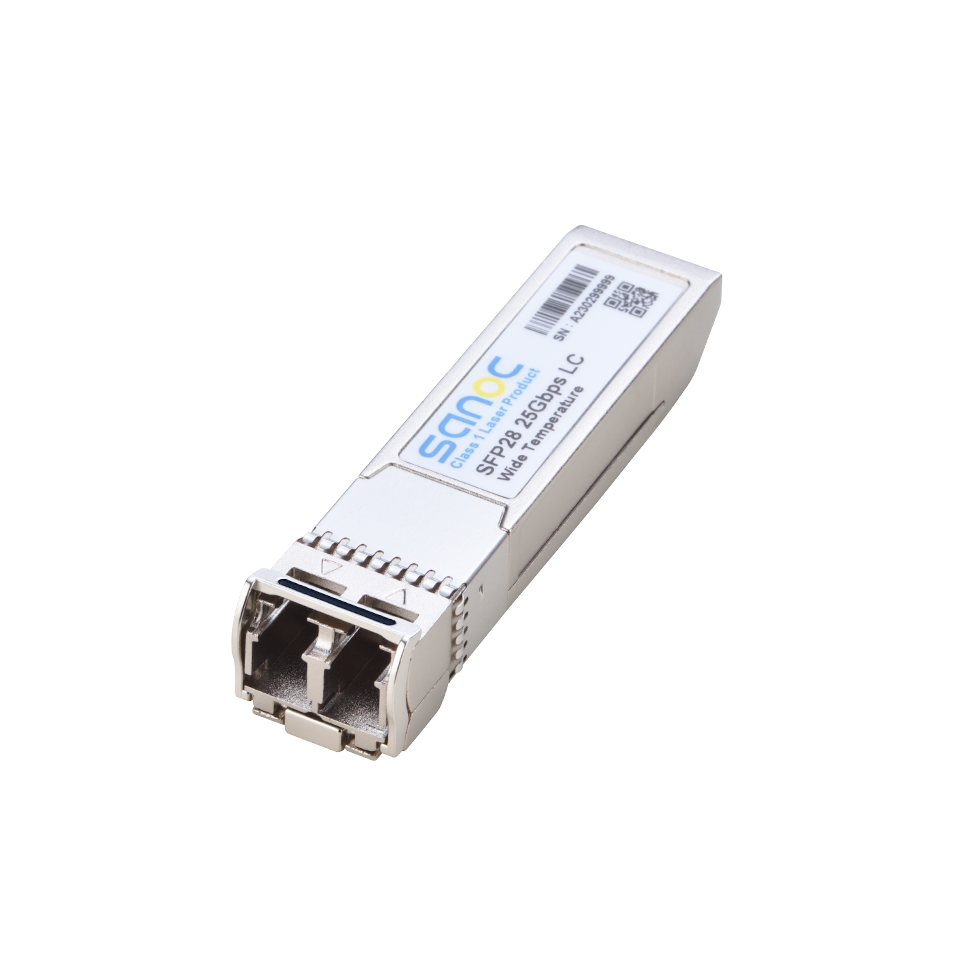

25G SFP28

OPTICAL TRANSCEIVER SFP+/SFP28 Optical Transceiver

25G SFP28

Part Number

SY85B5-X1ATXX-WT

SY85B5-X3ATXX-WT

SY13B5-10ATXX-WT

SY13B5-20ATXX-WT

SY13B5-40ATXX-WT

SS27B5-X3ATXX-WT

SS33B5-X3ATXX-WT

SS27B5-10ATXX-WT

SS33B5-10ATXX-WT

SS27B5-20ATXX-WT

SS33B5-20ATXX-WT

SS27B5-40ATXX-WT

SS33B5-40ATXX-WT

Quantity

Specification

Part Number	Data Rate	Distance	Wavelength	Connector	Output Power	Sensitivity	Temperature	Remark
SY85B5-X1ATXX	25G	100m (Om4)	850nm	Double LC			0~70°
SY85B5-X3ATXX	25G	300m (Om4)	850nm	Double LC			0~70°
SY13B5-10ATXX	25G	10km	1310nm	Double LC			0~70°
SY13B5-20ATXX	25G	20km	1310nm	Double LC			0~70°
SY13B5-40ATXX	25G	40km	1310nm	Double LC			0~70°
SS27B5-X3ATXX	25G	300m	1270/1330nm	Single LC			0~70°
SS33B5-X3ATXX	25G	300m	1330/1270nm	Single LC			0~70°
SS27B5-10ATXX	25G	10km	1270/1330nm	Single LC			0~70°
SS33B5-10ATXX	25G	10km	1330/1270nm	Single LC			0~70°
SS27B5-20ATXX	25G	20km	1270/1330nm	Single LC			0~70°
SS33B5-20ATXX	25G	20km	1330/1270nm	Single LC			0~70°
SS27B5-40ATXX	25G	40km	1270/1330nm	Single LC			0~70°
SS33B5-40ATXX	25G	40km	1330/1270nm	Single LC			0~70°
SY85B5-X1ATXX-WT	25G	100m (Om4)	850nm	Double LC			-40~80°
SY85B5-X3ATXX-WT	25G	300m (Om4)	850nm	Double LC			-40~80°
SY13B5-10ATXX-WT	25G	10km	1310nm	Double LC			-40~80°
SY13B5-20ATXX-WT	25G	20km	1310nm	Double LC			-40~80°
SY13B5-40ATXX-WT	25G	40km	1310nm	Double LC			-40~80°
SS27B5-X3ATXX-WT	25G	300m	1270/1330nm	Single LC			-40~80°
SS33B5-X3ATXX-WT	25G	300m	1330/1270nm	Single LC			-40~80°
SS27B5-10ATXX-WT	25G	10km	1270/1330nm	Single LC			-40~80°
SS33B5-10ATXX-WT	25G	10km	1330/1270nm	Single LC			-40~80°
SS27B5-20ATXX-WT	25G	20km	1270/1330nm	Single LC			-40~80°
SS33B5-20ATXX-WT	25G	20km	1330/1270nm	Single LC			-40~80°
SS27B5-40ATXX-WT	25G	40km	1270/1330nm	Single LC			-40~80°
SS33B5-40ATXX-WT	25G	40km	1330/1270nm	Single LC			-40~80°
