首頁 / 200G Breakout DAC

200G Breakout DAC

DAC/AOC/AEC CABLE Breakout DAC Cable

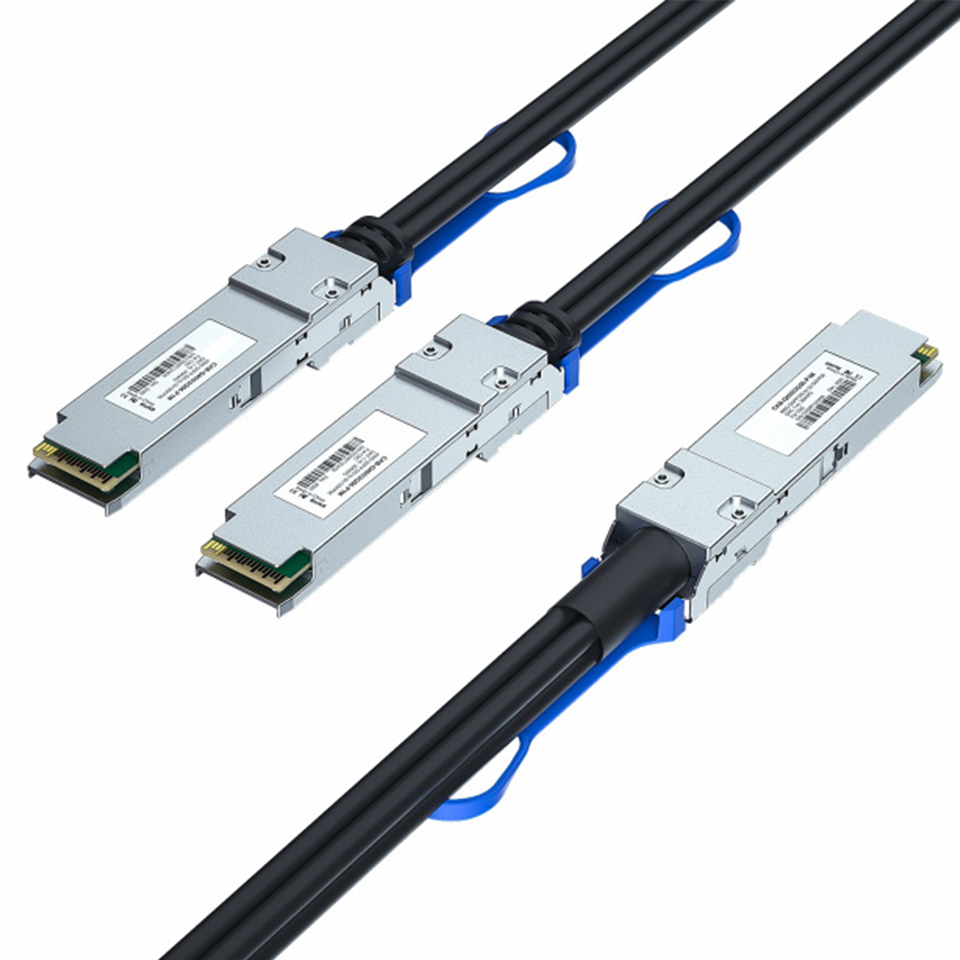

200G Breakout DAC

Part Number

SQ00T0-ZXATXX-DAC1X2
SQ00T0-ZXATXX-DAC1X2
SQ00T0-ZXATXX-DAC1X4
SQ00T0-ZXATXX-DAC1X4
SQ00T0-ZXATXX-DAC1X2
SQ00T0-ZXATXX-DAC1X2
SQ00T0-ZXATXX-DAC1X4
SQ00T0-ZXATXX-DAC1X8
SQ00T0-ZXATXX-DAC1X8

Quantity

Specification

Part Number Description Passive or Active Media AWG Length Remark
SQ00T0-ZXATXX-DAC1X2
QSFP10 to 2* QSFP10-200G-DAC Passive Copper AWG30 0.5M~1.5M
SQ00T0-ZXATXX-DAC1X2
QSFP10 to 2* QSFP10-200G-DAC Passive Copper AWG26 2M~3M
SQ00T0-ZXATXX-DAC1X4
QSFP10 to 4* SFP10-200G-DAC Passive Copper AWG30 0.5M~1M
SQ00T0-ZXATXX-DAC1X4
QSFP10 to 4* SFP10-200G-DAC Passive Copper AWG26 2M~3M
SQ00T0-ZXATXX-DAC1X2
QSFP-DD to 2*QSFP28-DAC Passive Twinax AWG30 0.5M~2.5M
SQ00T0-ZXATXX-DAC1X2
QSFP-DD to 2*QSFP28-DAC Passive Twinax AWG26 3M~3.5M
SQ00T0-ZXATXX-DAC1X4
QSFP-DD to 4*QSFP28-DAC Passive Twinax AWG30 0.5M~2.5M
SQ00T0-ZXATXX-DAC1X8
QSFP-DD to 8*SFP28-DAC Passive Twinax AWG30 0.5M~3M
SQ00T0-ZXATXX-DAC1X8
QSFP-DD to 8*SFP28-DAC Passive Twinax AWG26 3M~5M
