BiDi SFP

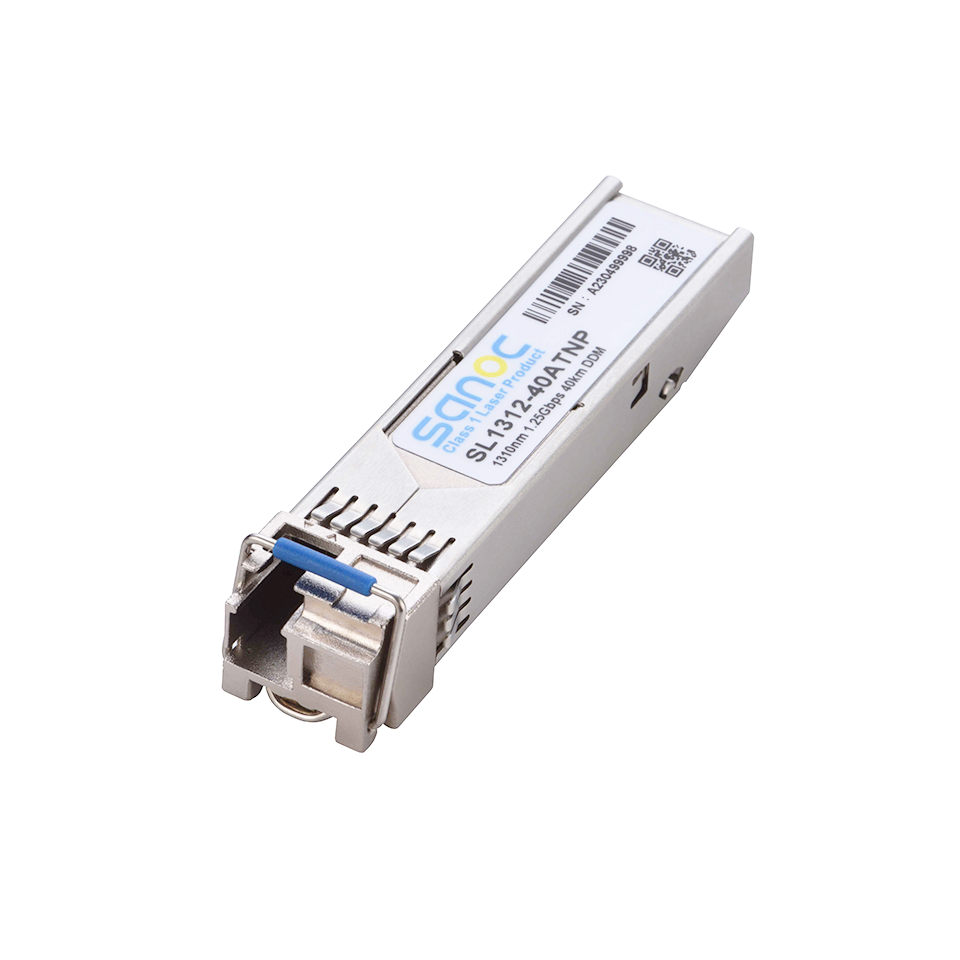

OPTICAL TRANSCEIVER SFP Optical Transceiver

SANOC提供種類齊全與優惠的BiDi SFP收發器。這些雙向模組採用WDM技術，可在單根光纖上同時發送和接收信號。數據速率涵蓋155Mbps、622Mbps、1Gbps和2.5Gbps，適用於快速以太網、千兆以太網、SONET、SDH和ATM應用。無論您需要10公里、20公里、40公里、70公里或120公里的BiDi SFP收發器，SANOC都是市場上值得信賴的供應商之一。值得注意的是，所有收發器均通過目標交換機的眼圖、誤碼和兼容性測試，以提供最佳的光纖網絡性能。

Part Number

SL1315-02ATXX

SL1315-02ATXX-WT

SL1515-02ATXX

SL1515-02ATXX-WT

SL1315-10ATXX

SL1315-10ATXX-WT

SL1515-20ATXX

SL1515-20ATXX-WT

SL1315-20ATXX

SL1315-20ATXX-WT

SL1515-20ATXX

SL1515-20ATXX-WT

SL1315-40ATXX

SL1315-40ATXX-WT

SL1515-40ATXX

SL1515-40ATXX-ET

SL1315-60ATXX

SL1315-60ATXX-WT

SL1515-60ATXX

SL1515-60ATXX-ET

SL1315-80ATXX

SL1315-80ATXX-WT

SL1515-80ATXX

SL1515-80ATXX-ET

SL5115-12ATXX

SL5115-12ATXX-WT

SL5915-12ATXX

SL5915-12ATXX-WT

SL5115-16ATXX

SL5115-16ATXX-WT

SL5915-16ATXX

SL5915-16ATXX-WT

SL5115-B0ATXX

SL5115-B0ATXX-WT

SL5915-B0ATXX

SL5915-B0ATXX-WT

SL1362-01ATXX

SL1362-01ATXX-WT

SL1562-01ATXX

SL1562-01ATXX-WT

SL1362-20ATXX

SL1362-20ATXX-WT

SL1562-20ATXX

SL1562-20ATXX-WT

SL1362-40ATXX

SL1362-40ATXX-WT

SL1562-40ATXX

SL1562-40ATXX-ET

SL5162-80ATXX

SL5162-80ATXX-WT

SL5962-80ATXX

SL5962-80ATXX-WT

SL5162-12ATXX

SL5162-12ATXX-WT

SL5962-12ATXX

SL5962-12ATXX-WT

SL1312-X5ATXX

SL1312-X5ATXX-WT

SL1512-X5ATXX

SL1512-X5ATXX-WT

SL3912-10ATXX

SL3912-10ATXX-WT

SL1912-10ATXX

SL1912-10ATXX-ET

SL1312-10AT

SL1512-10ATXX

SL1512-10ATXX-WT

SL3912-20ATXX

SL3912-20ATXX-WT

SL1912-20ATXX

SL1912-20ATXX-ET

SL1312-20ATXX

SL1312-20ATXX-ET

SL1512-20ATXX

SL1512-20ATXX-WT

SL3912-40ATXX

SL3912-40ATXX-WT

SL1912-40ATXX

SL1912-40ATXX-WT

SL1312-40ATXX

SL1312-40AT

SL1512-40AT

SL3912-60ATXX

SL3912-60ATXX-WT

SL1912-60ATXX

SL1912-60ATXX-WT

SL1312-60ATXX

SL1312-60ATXX-WT

SL1512-60ATXX

SL1512-60ATXX-ET

SL5112-80ATXX

SL5112-80ATXX-ET

SL5912-80ATXX

SL5912-80ATXX-ET

SL5112-12ATXX

SL5112-12ATXX-ET

SL5912-12ATXX

SL5912-12ATXX-ET

SL5112-16ATXX

SL5112-16ATXX-WT

SL5912-16ATXX

SL5912-16ATXX-WT

SL1325-X3ATXX

SL1325-X3ATXX-WT

SL1525-X3ATXX

SL1525-X3ATXX-WT

SL1325-05ATXX

SL1325-05ATXX-WT

SL1525-05ATXX

SL1525-05ATXX-WT

SL3925-05ATXX

SL3925-05ATXX-WT

SL1925-05ATXX

SL1925-05ATXX-WT

SL1325-20ATXX

SL1325-20ATXX-WT

SL1525-20ATXX

SL1525-20ATXX-ET

SL3925-20ATXX

SL3925-20ATXX-WT

SL1925-20ATXX

SL1925-20ATXX-WT

SL1325-40ATXX

SL1325-40ATXX-WT

SL1525-40ATXX

SL1525-40ATXX-ET

SL3925-40ATXX

SL3925-40ATXX-WT

SL1925-40ATXX

SL1925-40ATXX-WT

SL5125-80ATXX

SL5125-80ATXX-ET

SL5925-80ATXX

SL5925-80ATXX-ET

SL5125-12ATXX

SL5925-12ATXX

Quantity

Specification

Part Number	Data Rate	Distance	Wavelength	Connector	Output Power	Sensitivity	Temperature
SL1315-02ATXX	125/155 M	2km	Tx1310nm / Rx1550nm	BiDi LC DDM	-8 to -15 dBm	-30 dBm	0 ~ 70°C
SL1315-02ATXX-WT	125/155 M	2km	Tx1310nm / Rx1550nm	BiDi LC DDM	-8 to -15 dBm	-30 dBm	-40 ~ 85°C
SL1515-02ATXX	125/155 M	2km	Tx1550nm / Rx1310nm	BiDi LC DDM	-8 to -15 dBm	-30 dBm	0 ~ 70°C
SL1515-02ATXX-WT	125/155 M	2km	Tx1550nm / Rx1310nm	BiDi LC DDM	-8 to -15 dBm	-30 dBm	-40 ~ 85°C
SL1315-10ATXX	125/155 M	10km	Tx1310nm / Rx1550nm	BiDi LC DDM	-8 to -14 dBm	-30 dBm	0 ~ 70°C
SL1315-10ATXX-WT	125/155 M	10km	Tx1310nm / Rx1550nm	BiDi LC DDM	-8 to -14 dBm	-30 dBm	-40 ~ 85°C
SL1515-20ATXX	125/155 M	10km	Tx1550nm / Rx1310nm	BiDi LC DDM	-8 to -14 dBm	-30 dBm	0 ~ 70°C
SL1515-20ATXX-WT	125/155 M	10km	Tx1550nm / Rx1310nm	BiDi LC DDM	-8 to -14 dBm	-30 dBm	-40 ~ 85°C
SL1315-20ATXX	125/155 M	20km	Tx1310nm / Rx1550nm	BiDi LC DDM	-5 to -15 dBm	-32 dBm	0 ~ 70°C
SL1315-20ATXX-WT	125/155 M	20km	Tx1310nm / Rx1550nm	BiDi LC DDM	-5 to -15 dBm	-32 dBm	-40 ~ 85°C
SL1515-20ATXX	125/155 M	20km	Tx1550nm / Rx1310nm	BiDi LC DDM	-8 to -14 dBm	-32 dBm	0 ~ 70°C
SL1515-20ATXX-WT	125/155 M	20km	Tx1550nm / Rx1310nm	BiDi LC DDM	-5 to -15 dBm	-32 dBm	-40 ~ 85°C
SL1315-40ATXX	125/155 M	40km	Tx1310nm / Rx1550nm	BiDi LC DDM	-3 to -8 dBm	-34 dBm	0 ~ 70°C
SL1315-40ATXX-WT	125/155 M	40km	Tx1310nm / Rx1550nm	BiDi LC DDM	0 to -8 dBm	-34 dBm	-40 ~ 85°C
SL1515-40ATXX	125/155 M	40km	Tx1550nm / Rx1310nm DFB	BiDi LC DDM	-3 to -9 dBm	-34 dBm	0 ~ 70°C
SL1515-40ATXX-ET	125/155 M	40km	Tx1550nm / Rx1310nm DFB	BiDi LC DDM	-3 to -8 dBm	-34 dBm	-20 ~ 85°C
SL1315-60ATXX	125/155 M	60km	Tx1310nm / Rx1550nm	BiDi LC DDM	0 to -5 dBm	-34 dBm	0 ~ 70°C
SL1315-60ATXX-WT	125/155 M	60km	Tx1310nm / Rx1550nm	BiDi LC DDM	0 to -5 dBm	-34 dBm	-40 ~ 85°C
SL1515-60ATXX	125/155 M	60km	Tx1550nm / Rx1310nm DFB	BiDi LC DDM	0 to -5 dBm	-34 dBm	0 ~ 70°C
SL1515-60ATXX-ET	125/155 M	60km	Tx1550nm / Rx1310nm DFB	BiDi LC DDM	0 to -5 dBm	-34 dBm	-40 ~ 85°C
SL1315-80ATXX	125/155 M	80km	Tx1310nm / Rx1550nm DFB	BiDi LC DDM	3 to -2 dBm	-34 dBm	0 ~ 70°C
SL1315-80ATXX-WT	125/155 M	80km	Tx1310nm / Rx1550nm	BiDi LC DDM	5 to 0 dBm	-34 dBm	-40 ~ 85°C
SL1515-80ATXX	125/155 M	80km	Tx1550nm / Rx1310nm DFB	BiDi LC DDM	2 to -3 dBm	-34 dBm	0 ~ 70°C
SL1515-80ATXX-ET	125/155 M	80km	Tx1550nm / Rx1310nm	BiDi LC DDM	5 to 0 dBm	-35 dBm	-20 ~ 85°C
SL5115-12ATXX	125/155 M	120km	Tx1510nm / Rx1590nm DFB	BiDi LC DDM	3 to -2 dBm	-34 dBm	0 ~ 70°C
SL5115-12ATXX-WT	125/155 M	120km	Tx1510nm / Rx1590nm DFB	BiDi LC DDM	3 to -2 dBm	-34 dBm	-40 ~ 85°C
SL5915-12ATXX	125/155 M	120km	Tx1590nm / Rx1510nm DFB	BiDi LC DDM	3 to -2 dBm	-34 dBm	0 ~ 70°C
SL5915-12ATXX-WT	125/155 M	120km	Tx1590nm / Rx1510nm DFB	BiDi LC DDM	3 to -2 dBm	-34 dBm	-40 ~ 85°C
SL5115-16ATXX	125/155 M	160km	Tx1510nm / Rx1590nm DFB	BiDi LC DDM	5 to 1 dBm	-35 dBm	0 ~ 70°C
SL5115-16ATXX-WT	125/155 M	160km	Tx1510nm / Rx1590nm DFB	BiDi LC DDM	5 to 1 dBm	-35 dBm	-40 ~ 85°C
SL5915-16ATXX	125/155 M	160km	Tx1590nm / Rx1510nm DFB	BiDi LC DDM	5 to 1 dBm	-35 dBm	0 ~ 70°C
SL5915-16ATXX-WT	125/155 M	160km	Tx1590nm / Rx1510nm DFB	BiDi LC DDM	5 to 1 dBm	-35 dBm	-40 ~ 85°C
SL5115-B0ATXX	125/155 M	200km	Tx1510nm / Rx1590nm DFB	BiDi LC DDM	5 to 1 dBm	-45 dBm	0 ~ 70°C
SL5115-B0ATXX-WT	125/155 M	200km	Tx1510nm / Rx1590nm DFB	BiDi LC DDM	5 to 1 dBm	-45 dBm	-40 ~ 85°C
SL5915-B0ATXX	125/155 M	200km	Tx1590nm / Rx1510nm DFB	BiDi LC DDM	5 to 1 dBm	-45 dBm	0 ~ 70°C
SL5915-B0ATXX-WT	125/155 M	200km	Tx1590nm / Rx1510nm DFB	BiDi LC DDM	5 to 1 dBm	-45 dBm	-40 ~ 85°C
SL1362-01ATXX	622M	1km	Tx1310nm / Rx1550nm DFB	BiDi LC DDM	-8 to -15 dBm	-26 dBm	0 ~ 70°C
SL1362-01ATXX-WT	622M	1km	Tx1310nm / Rx1550nm DFB	BiDi LC DDM	-8 to -15 dBm	-26 dBm	-40 ~ 85°C
SL1562-01ATXX	622M	1km	Tx1550nm / Rx1310nm	BiDi LC DDM	-8 to -15 dBm	-26 dBm	0 ~ 70°C
SL1562-01ATXX-WT	622M	1km	Tx1550nm / Rx1310nm	BiDi LC DDM	-8 to -15 dBm	-26 dBm	-40 ~ 85°C
SL1362-20ATXX	622M	20km	Tx1310nm / Rx1550nm	BiDi LC DDM	-8 to -14 dBm	-28 dBm	0 ~ 70°C
SL1362-20ATXX-WT	622M	20km	Tx1310nm / Rx1550nm	BiDi LC DDM	-8 to -14 dBm	-28 dBm	-40 ~ 85°C
SL1562-20ATXX	622M	20km	Tx1550nm / Rx1310nm DFB	BiDi LC DDM	-8 to -14 dBm	-28 dBm	0 ~ 70°C
SL1562-20ATXX-WT	622M	20km	Tx1550nm / Rx1310nm DFB	BiDi LC DDM	-8 to -14 dBm	-28 dBm	-40 ~ 85°C
SL1362-40ATXX	622M	40km	Tx1310nm / Rx1550nm	BiDi LC DDM	0 to -5 dBm	-28 dBm	0 ~ 70°C
SL1362-40ATXX-WT	622M	40km	Tx1310nm / Rx1550nm	BiDi LC DDM	2 to -3 dBm	-28 dBm	-40 ~ 85°C
SL1562-40ATXX	622M	40km	Tx1550nm / Rx1310nm DFB	BiDi LC DDM	0 to -5 dBm	-28 dBm	0 ~ 70°C
SL1562-40ATXX-ET	622M	40km	Tx1550nm / Rx1310nm DFB	BiDi LC DDM	2 to -3 dBm	-28 dBm	-20 ~ 85°C
SL5162-80ATXX	622M	80km	Tx1510nm / Rx1590nm DFB	BiDi LC DDM	2 to -3 dBm	-28 dBm	0 ~ 70°C
SL5162-80ATXX-WT	622M	80km	Tx1510nm / Rx1590nm DFB	BiDi LC DDM	2 to -3 dBm	-28 dBm	-40 ~ 85°C
SL5962-80ATXX	622M	80km	Tx1590nm / Rx1510nm DFB	BiDi LC DDM	2 to -3 dBm	-28 dBm	0 ~ 70°C
SL5962-80ATXX-WT	622M	80km	Tx1590nm / Rx1510nm DFB	BiDi LC DDM	2 to -3 dBm	-28 dBm	-40 ~ 85°C
SL5162-12ATXX	622M	120km	Tx1510nm / Rx1590nm DFB	BiDi LC DDM	2 to -3 dBm	-35 dBm	0 ~ 70°C
SL5162-12ATXX-WT	622M	120km	Tx1510nm / Rx1590nm	BiDi LC DDM	2 to -3 dBm	-35 dBm	-40 ~ 85°C
SL5962-12ATXX	622M	120km	Tx1590nm / Rx1510nm DFB	BiDi LC DDM	2 to -3 dBm	-35 dBm	0 ~ 70°C
SL5962-12ATXX-WT	622M	120km	Tx1590nm / Rx1510nm	BiDi LC DDM	2 to -3 dBm	-35 dBm	-40 ~ 85°C
SL1312-X5ATXX	1.25G	550m	Tx1310nm / Rx1550nm	BiDi LC DDM	-4 to -10 dBm	-17 dBm	0 ~ 70°C
SL1312-X5ATXX-WT	1.25G	550m	Tx1310nm / Rx1550nm	BiDi LC DDM	-4 to -10 dBm	-17 dBm	-40 ~ 85°C
SL1512-X5ATXX	1.25G	550m	Tx1550nm / Rx1310nm	BiDi LC DDM	-4 to -10 dBm	-17 dBm	0 ~ 70°C
SL1512-X5ATXX-WT	1.25G	550m	Tx1550nm / Rx1310nm	BiDi LC DDM	-4 to -10 dBm	-17 dBm	-40 ~ 85°C
SL3912-10ATXX	1.25G	10km	Tx1310nm / Rx1490nm	BiDi LC DDM	-3 to -9 dBm	-21 dBm	0 ~ 70°C
SL3912-10ATXX-WT	1.25G	10km	Tx1310nm / Rx1490nm	BiDi LC DDM	-3 to -9 dBm	-21 dBm	-40 ~ 85°C
SL1912-10ATXX	1.25G	10km	Tx1490nm / Rx1310nm	BiDi LC DDM	-3 to -9 dBm	-21 dBm	0 ~ 70°C
SL1912-10ATXX-ET	1.25G	10km	Tx1490nm / Rx1310nm DFB	BiDi LC DDM	-3 to -9 dBm	-21 dBm	-20 ~ 85°C
SL1312-10AT	1.25G	10km	Tx1310nm / Rx1550nm	BiDi LC DDM	-3 to -9 dBm	-21 dBm	0 ~ 70°C
SL1312-10AT	1.25G	10km	Tx1310nm / Rx1550nm	BiDi LC DDM	-3 to -9 dBm	-21 dBm	-40 ~ 85°C
SL1512-10ATXX	1.25G	10km	Tx1550nm / Rx1310nm DFB	BiDi LC DDM	-3 to -9 dBm	-21 dBm	0 ~ 70°C
SL1512-10ATXX-WT	1.25G	10km	Tx1550nm / Rx1310nm DFB	BiDi LC DDM	-3 to -9 dBm	-20 dBm	-40 ~ 85°C
SL3912-20ATXX	1.25G	20km	Tx1310nm / Rx1490nm	BiDi LC DDM	-3 to -8 dBm	-22 dBm	0 ~ 70°C
SL3912-20ATXX-WT	1.25G	20km	Tx1310nm / Rx1490nm	BiDi LC DDM	-3 to -8 dBm	-22 dBm	-40 ~ 85°C
SL1912-20ATXX	1.25G	20km	Tx1490nm / Rx1310nm DFB	BiDi LC DDM	-3 to -9 dBm	-23 dBm	0 ~ 70°C
SL1912-20ATXX-ET	1.25G	20km	Tx1490nm / Rx1310nm DFB	BiDi LC DDM	-3 to -9 dBm	-23 dBm	-20 ~ 85°C
SL1312-20ATXX	1.25G	20km	Tx1310nm / Rx1550nm	BiDi LC DDM	-3 to -9 dBm	-23 dBm	0 ~ 70°C
SL1312-20ATXX-ET	1.25G	20km	Tx1310nm / Rx1550nm DFB	BiDi LC DDM	0 to -6 dBm	-24 dBm	-20 ~ 85°C
SL1512-20ATXX	1.25G	20km	Tx1550nm / Rx1310nm DFB	BiDi LC DDM	-3 to -9 dBm	-23 dBm	0 ~ 70°C
SL1512-20ATXX-WT	1.25G	20km	Tx1550nm / Rx1310nm DFB	BiDi LC DDM	-3 to -9 dBm	-23 dBm	-40 ~ 85°C
SL3912-40ATXX	1.25G	40km	Tx1310nm / Rx1490nm DFB	BiDi LC DDM	2 to -3 dBm	-23 dBm	0 ~ 70°C
SL3912-40ATXX-WT	1.25G	40km	Tx1310nm / Rx1490nm DFB	BiDi LC DDM	2 to -3 dBm	-23 dBm	-40 ~ 85°C
SL1912-40ATXX	1.25G	40km	Tx1490nm / Rx1310nm DFB	BiDi LC DDM	0 to -5 dBm	-23 dBm	0 ~ 70°C
SL1912-40ATXX-WT	1.25G	40km	Tx1490nm / Rx1310nm DFB	BiDi LC DDM	0 to -5 dBm	-23 dBm	-40 ~ 85°C
SL1312-40ATXX	1.25G	40km	Tx1310nm / Rx1550nm DFB	BiDi LC DDM	0 to -6 dBm	-24 dBm	0 ~ 70°C
SL1312-40AT	1.25G	40km	Tx1310nm / Rx1550nm DFB	BiDi LC DDM	2 to -3 dBm	-24 dBm	-40 ~ 85°C
SL1512-40AT	1.25G	40km	Tx1550nm / Rx1310nm	BiDi LC DDM	3 to -2 dBm	-23 dBm	0 ~ 70°C
SL1512-40AT	1.25G	40km	Tx1550nm / Rx1310nm DFB	BiDi LC DDM	2 to -3 dBm	-23 dBm	-20 ~ 85°C
SL3912-60ATXX	1.25G	60km	Tx1310nm / Rx1490nm DFB	BiDi LC DDM	4 to -1 dBm	-26 dBm	0 ~ 70°C
SL3912-60ATXX-WT	1.25G	60km	Tx1310nm / Rx1490nm DFB	BiDi LC DDM	4 to -1 dBm	-26 dBm	-40 ~ 85°C
SL1912-60ATXX	1.25G	60km	Tx1490nm / Rx1310nm DFB	BiDi LC DDM	2 to -3 dBm	-26 dBm	0 ~ 70°C
SL1912-60ATXX-WT	1.25G	60km	Tx1490nm / Rx1310nm DFB	BiDi LC DDM	2 to -3 dBm	-26 dBm	-40 ~ 85°C
SL1312-60ATXX	1.25G	60km	Tx1310nm / Rx1550nm DFB	BiDi LC DDM	4 to -1 dBm	-26 dBm	0 ~ 70°C
SL1312-60ATXX-WT	1.25G	60km	Tx1310nm / Rx1550nm DFB	BiDi LC DDM	4 to -1 dBm	-26 dBm	-40 ~ 85°C
SL1512-60ATXX	1.25G	60km	Tx1550nm / Rx1310nm DFB	BiDi LC DDM	2 to -3 dBm	-26 dBm	0 ~ 70°C
SL1512-60ATXX-ET	1.25G	60km	Tx1550nm / Rx1310nm DFB	BiDi LC DDM	4 to -3 dBm	-25 dBm	-20 ~ 85°C
SL5112-80ATXX	1.25G	80km	Tx1510nm / Rx1590nm DFB	BiDi LC DDM	3 to -2 dBm	-26 dBm	0 ~ 70°C
SL5112-80ATXX-ET	1.25G	80km	Tx1510nm / Rx1590nm DFB	BiDi LC DDM	4 to -2 dBm	-25 dBm	-10 ~ 85°C
SL5912-80ATXX	1.25G	80km	Tx1590nm / Rx1510nm DFB	BiDi LC DDM	3 to -2 dBm	-26 dBm	0 ~ 70°C
SL5912-80ATXX-ET	1.25G	80km	Tx1590nm / Rx1510nm DFB	BiDi LC DDM	4 to -2 dBm	-25 dBm	-10 ~ 85°C
SL5112-12ATXX			Tx1510nm / Rx1590nm DFB	BiDi LC DDM	3 to -2 dBm	-33 dBm	0 ~ 70°C
SL5112-12ATXX-ET	1.25G	120km	Tx1510nm / Rx1590nm DFB	BiDi LC DDM	5 to -1 dBm	-33 dBm	-10 ~ 85°C
SL5912-12ATXX			Tx1590nm / Rx1510nm DFB	BiDi LC DDM	3 to -2 dBm	-33 dBm	0 ~ 70°C
SL5912-12ATXX-ET	1.25G	120km	Tx1590nm / Rx1510nm DFB	BiDi LC DDM	5 to -1 dBm	-33 dBm	-10 ~ 85°C
SL5112-16ATXX	1.25G	160km	Tx1510nm / Rx1590nm DFB	BiDi LC DDM	6 to 3 dBm	-34 dBm	0 ~ 70°C
SL5112-16ATXX-WT	1.25G	160km	Tx1510nm / Rx1590nm DFB	BiDi LC DDM	6 to 3 dBm	-34 dBm	-40 ~ 85°C
SL5912-16ATXX	1.25G	160km	Tx1590nm / Rx1510nm DFB	BiDi LC DDM	6 to 3 dBm	-34 dBm	0 ~ 70°C
SL5912-16ATXX-WT	1.25G	160km	Tx1590nm / Rx1510nm DFB	BiDi LC DDM	6 to 3 dBm	-34 dBm	-40 ~ 85°C
SL1325-X3ATXX	2.5G	300m	Tx1310nm / Rx1550nm	BiDi LC DDM	0 to -9 dBm	-15 dBm	0 ~ 70°C
SL1325-X3ATXX-WT	2.5G	300m	Tx1310nm / Rx1550nm	BiDi LC DDM	0 to -9 dBm	-15 dBm	-40 ~ 85°C
SL1525-X3ATXX	2.5G	300m	Tx1550nm / Rx1310nm	BiDi LC DDM	0 to -9 dBm	-15 dBm	0 ~ 70°C
SL1525-X3ATXX-WT	2.5G	300m	Tx1550nm / Rx1310nm	BiDi LC DDM	0 to -9 dBm	-15 dBm	-40 ~ 85°C
SL1325-05ATXX	2.5G	5km	Tx1310nm / Rx1550nm	BiDi LC DDM	-3 to -10 dBm	-18 dBm	0 ~ 70°C
SL1325-05ATXX-WT	2.5G	5km	Tx1310nm / Rx1550nm	BiDi LC DDM	-3 to -10 dBm	-18 dBm	-40 ~ 85°C
SL1525-05ATXX	2.5G	5km	Tx1550nm / Rx1310nm	BiDi LC DDM	-3 to -10 dBm	-18 dBm	0 ~ 70°C
SL1525-05ATXX-WT	2.5G	5km	Tx1550nm / Rx1310nm	BiDi LC DDM	-3 to -10 dBm	-18 dBm	-40 ~ 85°C
SL3925-05ATXX	2.5G	5km	Tx1310nm / Rx1490nm	BiDi LC DDM	-3 to -10 dBm	-18 dBm	0 ~ 70°C
SL3925-05ATXX-WT	2.5G	5km	Tx1310nm / Rx1490nm	BiDi LC DDM	-3 to -10 dBm	-18 dBm	-40 ~ 85°C
SL1925-05ATXX	2.5G	5km	Tx1490nm / Rx1310nm DFB	BiDi LC DDM	-3 to -10 dBm	-18 dBm	0 ~ 70°C
SL1925-05ATXX-WT	2.5G	5km	Tx1490nm / Rx1310nm DFB	BiDi LC DDM	-3 to -10 dBm	-18 dBm	-40 ~ 85°C
SL1325-20ATXX	2.5G	20km	Tx1310nm / Rx1550nm DFB	BiDi LC DDM	0 to -5 dBm	-18 dBm	0 ~ 70°C
SL1325-20ATXX-WT	2.5G	20km	Tx1310nm / Rx1550nm DFB	BiDi LC DDM	0 to -5 dBm	-20 dBm	-40 ~ 85°C
SL1525-20ATXX	2.5G	20km	Tx1550nm / Rx1310nm DFB	BiDi LC DDM	0 to -5 dBm	-18 dBm	0 ~ 70°C
SL1525-20ATXX-ET	2.5G	20km	Tx1550nm / Rx1310nm DFB	BiDi LC DDM	0 to -5 dBm	-18 dBm	-20 ~ 85°C
SL3925-20ATXX	2.5G	20km	Tx1310nm / Rx1490nm DFB	BiDi LC DDM	0 to -5 dBm	-18 dBm	0 ~ 70°C
SL3925-20ATXX-WT	2.5G	20km	Tx1310nm / Rx1490nm DFB	BiDi LC DDM	0 to -5 dBm	-18 dBm	-40 ~ 85°C
SL1925-20ATXX	2.5G	20km	Tx1490nm / Rx1310nm DFB	BiDi LC DDM	0 to -5 dBm	-18 dBm	0 ~ 70°C
SL1925-20ATXX-WT	2.5G	20km	Tx1490nm / Rx1310nm DFB	BiDi LC DDM	0 to -5 dBm	-18 dBm	-40 ~ 85°C
SL1325-40ATXX	2.5G	40km	Tx1310nm / Rx1550nm DFB	BiDi LC DDM	3 to -2 dBm	-22 dBm	0 ~ 70°C
SL1325-40ATXX-WT	2.5G	40km	Tx1310nm / Rx1550nm DFB	BiDi LC DDM	2 to -3 dBm	-22 dBm	-40 ~ 85°C
SL1525-40ATXX	2.5G	40km	Tx1550nm / Rx1310nm DFB	BiDi LC DDM	3 to -2 dBm	-22 dBm	0 ~ 70°C
SL1525-40ATXX-ET	2.5G	40km	Tx1550nm / Rx1310nm DFB	BiDi LC DDM	2 to -3 dBm	-22 dBm	-20 ~ 85°C
SL3925-40ATXX	2.5G	40km	Tx1310nm / Rx1490nm DFB	BiDi LC DDM	3 to -2 dBm	-20 dBm	0 ~ 70°C
SL3925-40ATXX-WT	2.5G	40km	Tx1310nm / Rx1490nm DFB	BiDi LC DDM	3 to -2 dBm	-20 dBm	-40 ~ 85°C
SL1925-40ATXX	2.5G	40km	Tx1490nm / Rx1310nm DFB	BiDi LC DDM	3 to -2 dBm	-20 dBm	0 ~ 70°C
SL1925-40ATXX-WT	2.5G	40km	Tx1490nm / Rx1310nm DFB	BiDi LC DDM	3 to -2 dBm	-20 dBm	-40 ~ 85°C
SL5125-80ATXX	2.5G	80km	Tx1510nm / Rx1590nm DFB	BiDi LC DDM	3 to -2 dBm	-28 dBm	0 ~ 70°C
SL5125-80ATXX-ET	2.5G	80km	Tx1510nm / Rx1590nm DFB	BiDi LC DDM	4 to -1 dBm	-28 dBm	-10 ~ 85°C
SL5925-80ATXX	2.5G	80km	Tx1590nm / Rx1510nm DFB	BiDi LC DDM	3 to -2 dBm	-28 dBm	0 ~ 70°C
SL5925-80ATXX-ET	2.5G	80km	Tx1590nm / Rx1510nm DFB	BiDi LC DDM	4 to -1 dBm	-28 dBm	-10 ~ 85°C
SL5125-12ATXX	2.5G	120km	Tx1510nm / Rx1590nm DFB	BiDi LC DDM	4 to 0 dBm	-29 dBm	0 ~ 70°C
SL5925-12ATXX	2.5G	120km	Tx1590nm / Rx1510nm DFB	BiDi LC DDM	4 to 0 dBm	-29 dBm	0 ~ 70°C

SFP光收發模組

SFP+/SFP28光收發模組

40G-800G光收發模組

1x9光收發模組

小型封裝光收發模組

銅芯高速纜線

銅芯高速分支纜線

主動光纖纜線

BiDi SFP

Part Number

Quantity

Specification

聯絡我們

諮詢報價

About US

Service

Quality

Support

Contact US

Policy
