首頁 / 1000BASE SFP

1000BASE SFP

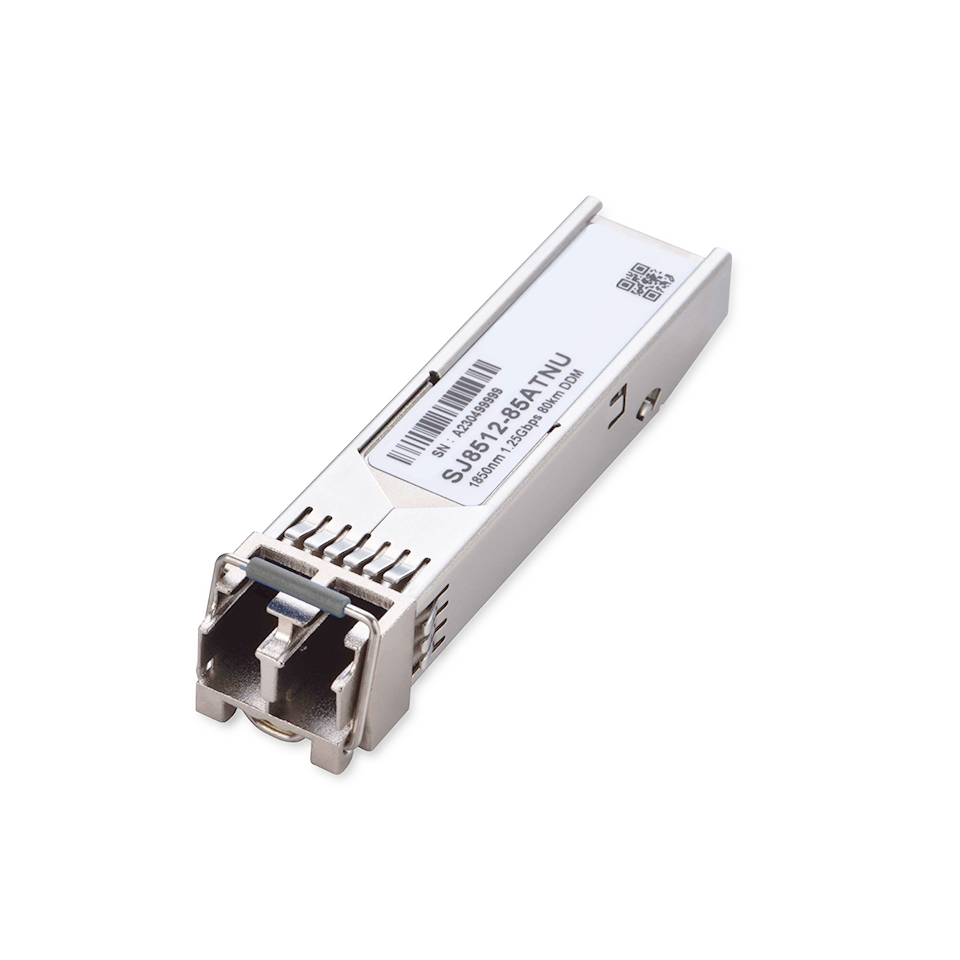

OPTICAL TRANSCEIVER SFP Optical Transceiver

SANOC的1000BASE SFP收發器適用於1G以太網和光纖通道應用。因此，有時被稱為1G SFP或GE SFP模組。所有收發器均符合SFP MSA、SFF-8472、CE、FCC、RoHS和相關行業標準。此外，每個單元都內置DOM/DDM功能，便於實時監控。我們提供各種1000BASE SFP，包括1000BASE-T、1000BASE-SX、1000BASE-LX/LH、1000BASE-EX和1000BASE-ZX，覆蓋100米到180公里的距離。探索我們的1000BASE SFP，立即享受優惠。

Part Number

SJ8512-X5ATXX
SJ8512-X5ATXX-ET
SJ3012-02ATXX
SJ3012-02ATXX-WT
SJ1312-10ATXX
SJ1312-10ATXX-WT
SJ1312-10AT
SJ1312-10AT-WT
SJ1312-20ATXX
SJ1312-20ATXX-WT
SJ1312-40ATXX
SJ1312-40ATXX-WT
SJ1312-50ATXX
SJ1312-50ATXX-WT
SJ1312-60ATXX
SJ1312-60ATXX-WT
SJ1512-80ATXX
SJ1512-80ATXX-ET
SJ1512-00ATXX
SJ1512-00ATXX-WT
SJ1512-12ATXX
SJ1512-12ATXX-WT
SJ1512-16ATXX
SJ1512-16ATXX-WT
SJ1512-18ATXX
SJ1512-18ATXX-WT
SJ1512-B0ATXX
SJ1512-B0ATXX-WT

Quantity

Specification

Part Number Data Rate Distance Wavelength Connector Output Power Sensitivity Temperature Remark
SJ8512-X5ATXX
1.25 G 300/550 m 850 nm LC SFP DDM -3 to -10 dBm -20 dBm 0 ~ 70°C
SJ8512-X5ATXX-ET
1.25 G 300/550 m 850 nm LC SFP DDM -3 to -10 dBm -20 dBm -20 ~ 85°C
SJ3012-02ATXX
1.25 G 2 km 1310 nm LC SFP DDM 0 to -10 dBm -20 dBm 0 ~ 70°C
SJ3012-02ATXX-WT
1.25 G 2 km 1310 nm LC SFP DDM 0 to -10 dBm -20 dBm -40 ~ 85°C
SJ1312-10ATXX
1.25 G 10 km 1310 nm LC SFP DDM -3 to -9 dBm -21 dBm 0 ~ 70°C
SJ1312-10ATXX-WT
1.25 G 10 km 1310 nm LC SFP DDM -3 to -9 dBm -21 dBm -40 ~ 85°C
SJ1312-10AT
1.25 G 10 km 1310 nm LC SFP DDM -3 to -9 dBm -25/-24dBm 0 ~ 70°C
SJ1312-10AT-WT
1.25 G 10 km 1310 nm LC SFP DDM -3 to -9 dBm -25/-24dBm -40 ~ 85°C
SJ1312-20ATXX
1.25 G 20 km 1310 nm LC SFP DDM -3 to -9 dBm -23 dBm 0 ~ 70°C
SJ1312-20ATXX-WT
1.25 G 20 km 1310 nm LC SFP DDM -3 to -9 dBm -23 dBm -40 ~ 85°C
SJ1312-40ATXX
1.25 G 40 km 1310 nm DFB LC SFP DDM 3 to -2 dBm -24 dBm 0 ~ 70°C
SJ1312-40ATXX-WT
1.25 G 40 km 1310 nm DFB LC SFP DDM 3 to -2 dBm -24 dBm -40 ~ 85°C
SJ1312-50ATXX
1.25 G 50 km 1310 nm DFB LC SFP DDM 0 to -5 dBm -23 dBm 0 ~ 70°C
SJ1312-50ATXX-WT
1.25 G 50 km 1310 nm DFB LC SFP DDM 0 to -5 dBm -23 dBm -40 ~ 85°C
SJ1312-60ATXX
1.25 G 60 km 1310 nm DFB LC SFP DDM 5 to 0 dBm -26 dBm 0 ~ 70°C
SJ1312-60ATXX-WT
1.25 G 60 km 1310 nm DFB LC SFP DDM 5 to 0 dBm -26 dBm -40 ~ 85°C
SJ1512-80ATXX
1.25 G 80 km 1550 nm DFB LC SFP DDM 5 to 0 dBm -24 dBm 0 ~ 70°C
SJ1512-80ATXX-ET
1.25 G 80 km 1550 nm DFB LC SFP DDM 5 to 0 dBm -24 dBm -20 ~ 85°C
SJ1512-00ATXX
1.25 G 100 km 1550 nm DFB LC SFP DDM 5 to 0 dBm -28 dBm 0 ~ 70°C
SJ1512-00ATXX-WT
1.25 G 100 km 1550 nm DFB LC SFP DDM 5 to 0 dBm -28 dBm -40 ~ 85°C
SJ1512-12ATXX
1.25 G 120 km 1550 nm DFB LC SFP DDM 5 to 0 dBm -32 dBm 0 ~ 70°C
SJ1512-12ATXX-WT
1.25 G 120 km 1550 nm DFB LC SFP DDM 5 to 0 dBm -32 dBm -40 ~ 85°C
SJ1512-16ATXX
1.25 G 160 km 1550 nm DFB LC SFP DDM 5 to 1 dBm -36 dBm 0 ~ 70°C
SJ1512-16ATXX-WT
1.25 G 160 km 1550 nm DFB LC SFP DDM 5 to 1 dBm -36 dBm -40 ~ 85°C
SJ1512-18ATXX
1.25 G 180 km 1550 nm DFB LC SFP DDM 6 to 3 dBm -36 dBm 0 ~ 70°C
SJ1512-18ATXX-WT
1.25 G 180 km 1550 nm DFB LC SFP DDM 6 to 3 dBm -36 dBm -40 ~ 85°C
SJ1512-B0ATXX
1.25 G 200 km 1550 nm DFB LC SFP DDM 8 to 5 dBm -36 dBm 0 ~ 70°C
SJ1512-B0ATXX-WT
1.25 G 200 km 1550 nm DFB LC SFP DDM 8 to 5 dBm -36 dBm -40 ~ 85°C
