1.25G SFF

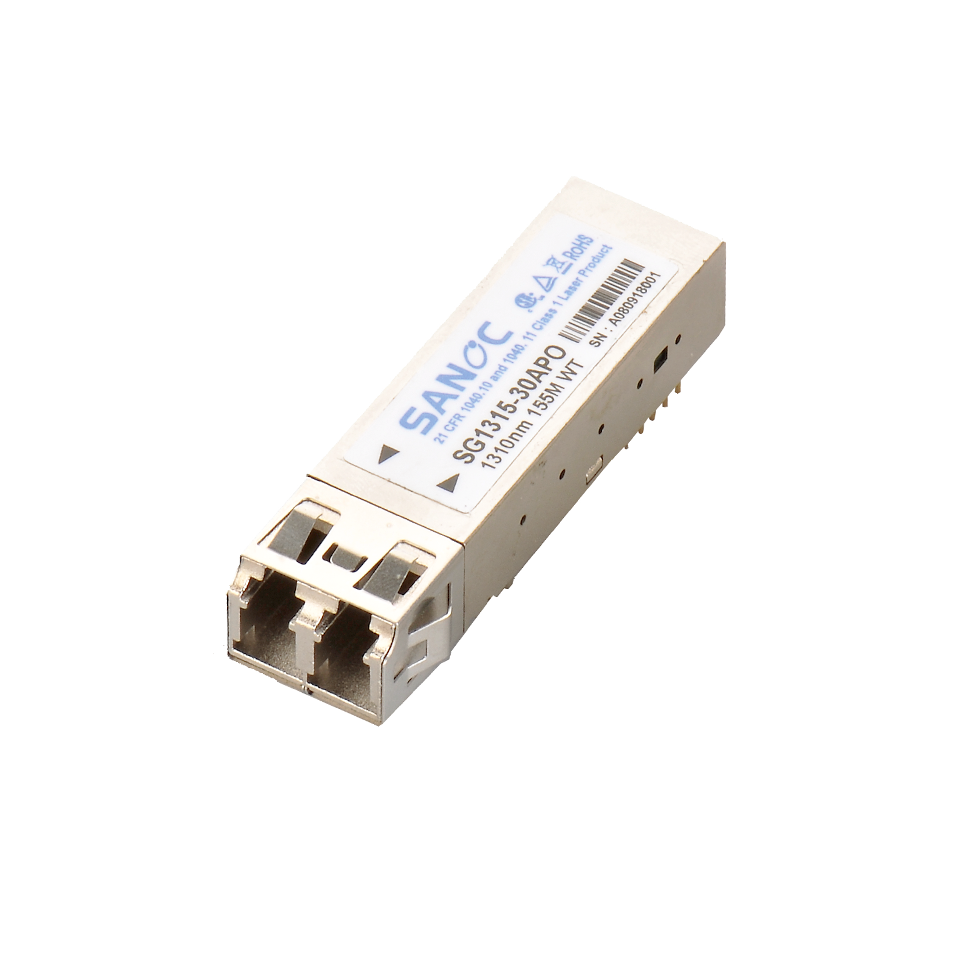

OPTICAL TRANSCEIVER SFF Optical Transceiver

1.25G SFF

Part Number

SG8512-X5ATXX-ET

SG1312-10ATXX-WT

SG1312-20XXXX-WT

SG1312-30XXXX-WT

SG1312-40XXXX-WT

SG1512-50XXXX-WT

SG1512-80XXXX-WT

SG1512-12XXXX-WT

Quantity

Specification

Part Number	Data Rate	Distance	Wavelength	Connector	Output Power	Sensitivity	Temperature	Remark
SG8512-X5ATXX	1.25G	550m	850nm	LC	-3 to -10 dBm	-20 dBm	0 ~ 70°C
SG8512-X5APXX	1.25G	550m	850nm	LC	-3 to -10 dBm	-20 dBm	0 ~ 70°C
SG8512-X5ATXX-ET	1.25G	550m	850nm	LC	-1.5 to -9.5 dBm	-18 dBm	-10 ~ 85°C
SG1312-10ATXX-WT	1.25G	10km	1310nm	LC	-3 to -9 dBm	-21 dBm	-40 ~ 85°C
SG1312-20XXXX	1.25G	20km	1310nm	LC	-1 to -6 dBm	-22 dBm	0 ~ 70°C
SG1312-20XXXX-WT	1.25G	20km	1310nm	LC	-1 to -6 dBm	-22 dBm	-40 ~ 85°C
SG1312-30XXXX	1.25G	30km	1310nm	LC	0 to -5 dBm	-24 dBm	0 ~ 70°C
SG1312-30XXXX-WT	1.25G	30km	1310nm DFB	LC	0 to -5 dBm	-24 dBm	-40 ~ 85°C
SG1312-40XXXX	1.25G	40km	1310nm DFB	LC	3 to -2 dBm	-24 dBm	0 ~ 70°C
SG1312-40XXXX-WT	1.25G	40km	1310nm DFB	LC	3 to -2 dBm	-24 dBm	-40 ~ 85°C
SG1512-50XXXX	1.25G	50km	1550nm DFB	LC	0 to -5 dBm	-24 dBm	0 ~ 70°C
SG1512-50XXXX-WT	1.25G	50km	1550nm DFB	LC	0 to -5 dBm	-24 dBm	-40 ~ 85°C
SG1512-80XXXX	1.25G	80km	1550nm DFB	LC	5 to 0 dBm	-32 dBm	0 ~ 70°C
SG1512-80XXXX-WT	1.25G	80km	1550nm DFB	LC	5 to 0 dBm	-32 dBm	-40 ~ 85°C
SG1512-12XXXX	1.25G	120km	1550nm DFB	LC	5 to 0 dBm	-32 dBm	0 ~ 70°C
SG1512-12XXXX-WT	1.25G	120km	1550nm DFB	LC	5 to 0 dBm	-32 dBm	-40 ~ 85°C
SG1512-16XXXX	1.25G	160km	1550nm DFB	LC	5 to 2 dBm	-34 dBm	0 ~ 70°C
