首頁 / 622M/2.5G 1x9

622M/2.5G 1x9

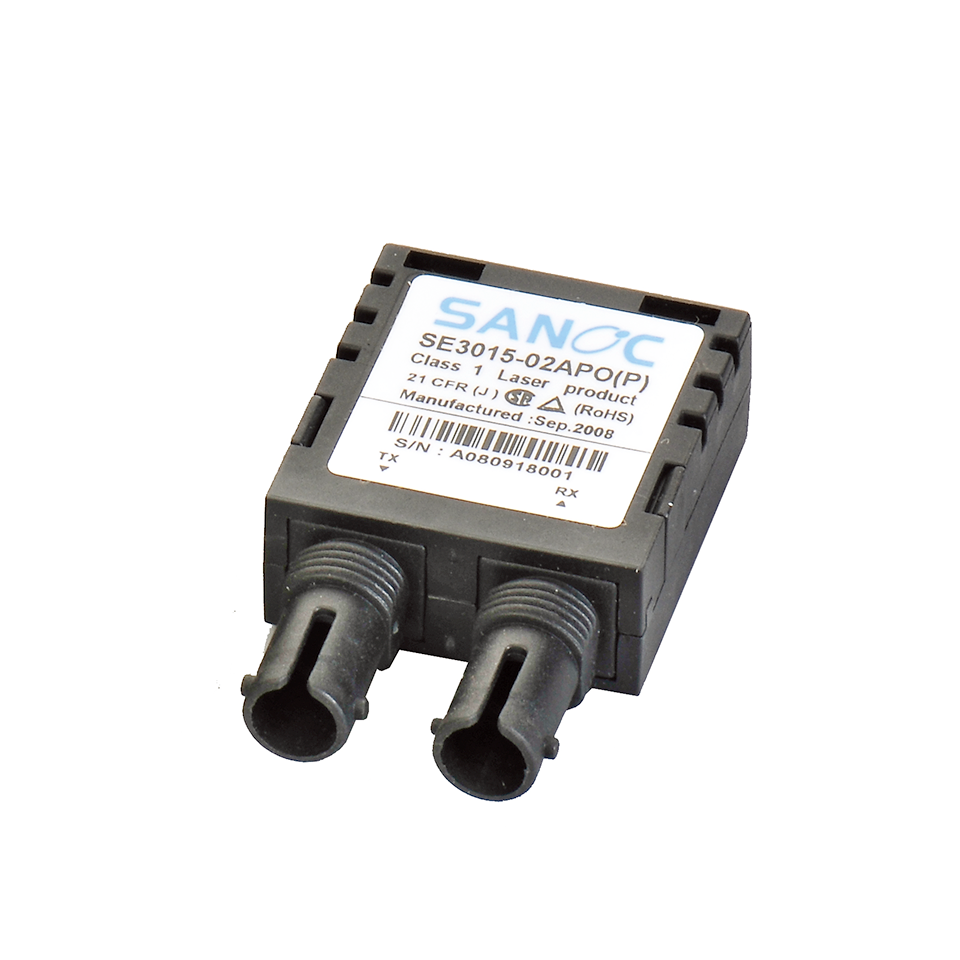

OPTICAL TRANSCEIVER 1x9 Optical Transceiver

622M/2.5G 1x9

Part Number

SE1362-40CPXX-WT
SC5562-80CPXX
SD1525-00CFXX
SD1325-20CTXX

Quantity

Specification

Part Number Data Rate Distance Wavelength Connector Output Power Sensitivity Temperature Remark
SE1362-40CPXX-WT
622M 40km 1310nm ST 2 to -3 dBm -28 dBm -40 ~ 85°C
SC5562-80CPXX
622M 80km 1550nm SC 2 to -3 dBm -28 dBm 0 ~ 70°C
SD1525-00CFXX
2.5G 100km 1550nm FC 5 to 0 dBm -28 dBm 0 ~ 70°C
SD1325-20CTXX
2.5G 20km 1310nm FC 0 to -5 dBm -20 dBm 0 ~ 70°C
