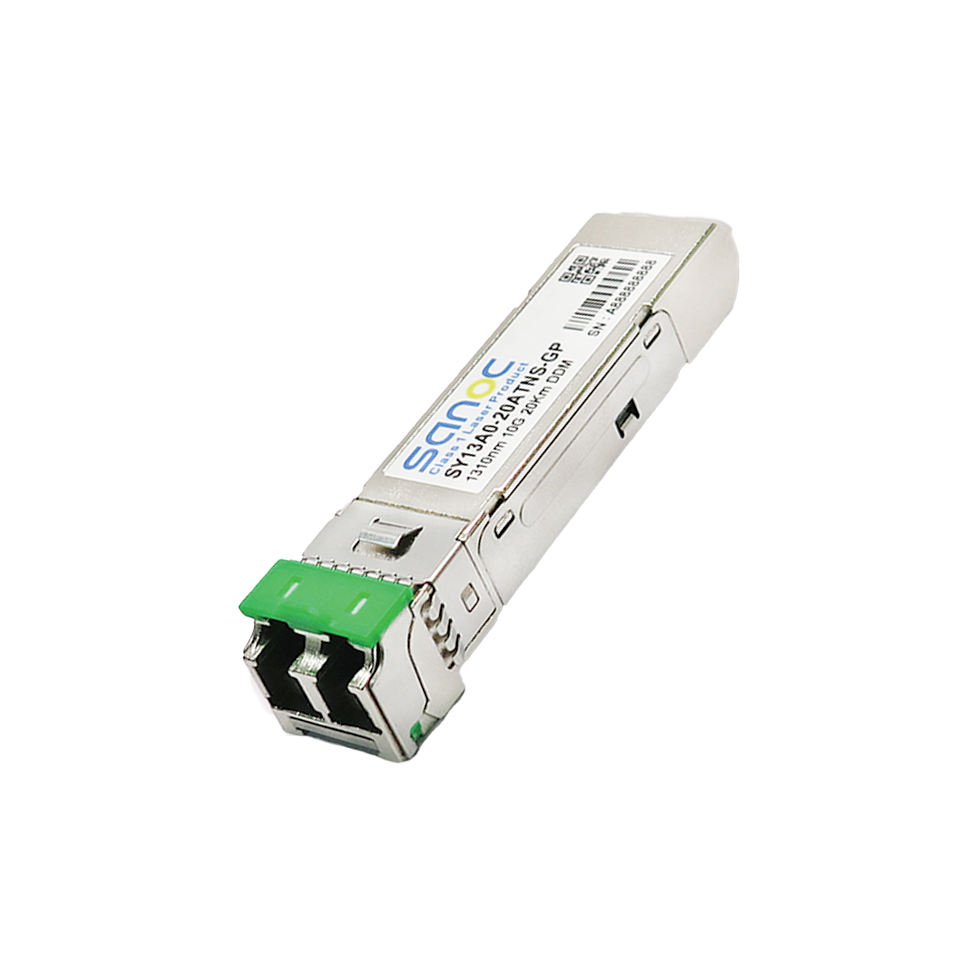

Low Power SFP+(EcoFiber)

OPTICAL TRANSCEIVER SFP+/SFP28 Optical Transceiver

Low Power SFP+(EcoFiber)

Part Number

SY85A0-X3ATXX-WT

SY13A0-10ATXX-WT

SY13A0-20ATXX-WT

SY13A0-40ATXX-ET

SS27A0-15ATXX-WT

SS33A0-15ATXX-WT

Quantity

Specification

Part Number	Data Rate	Distance	Wavelength	Connector	Output Power	Sensitivity	Temperature	Remark
SY85A0-X3ATXX	10G	300m	850nm	LC DDM	-1 to -7 dBm	-9.9 dBm	0 ~ 70°C
SY85A0-X3ATXX-WT	10G	300m	850nm	LC DDM	-1 to -7 dBm	-9.9 dBm	-40 ~ 85°C
SY13A0-10ATXX	10G	10km	1310nm DFB	LC DDM	0.5 to -8.2 dBm	-14.5 dBm	0 ~ 70°C
SY13A0-10ATXX-WT	10G	10km	1310nm DFB	LC DDM	0.5 to -8.2 dBm	-14.5 dBm	-40 ~ 85°C
SY13A0-20ATXX	10G	20km	1310nm DFB	LC DDM	1 to -5 dBm	-14.4 dBm	0 ~ 70°C
SY13A0-20ATXX-WT	10G	20km	1310nm DFB	LC DDM	1 to -5 dBm	-14.4 dBm	-40 ~ 85°C
SY13A0-40ATXX-ET	10G	40km	1310nm DFB	LC DDM	5 to 0.5 dBm	-14.5 dBm	-20 ~ 85°C
SS27A0-15ATXX-WT	10G	15km	1270nm DFB	BiDi LC DDM	0 to -4 dBm	-15 dBm	-40 ~ 85°C
SS33A0-15ATXX-WT	10G	15km	1330nm DFB	BiDi LC DDM	0 to -4 dBm	-15 dBm	-40 ~ 85°C
SS27A0-20ATXX	10G	20km	1270nm DFB	BiDi LC DDM	3 to -3 dBm	-14 dBm	0 ~ 70°C
SS33A0-20ATXX	10G	20km	1330nm DFB	BiDi LC DDM	3 to -3 dBm	-14 dBm	0 ~ 70°C
