155M SFF

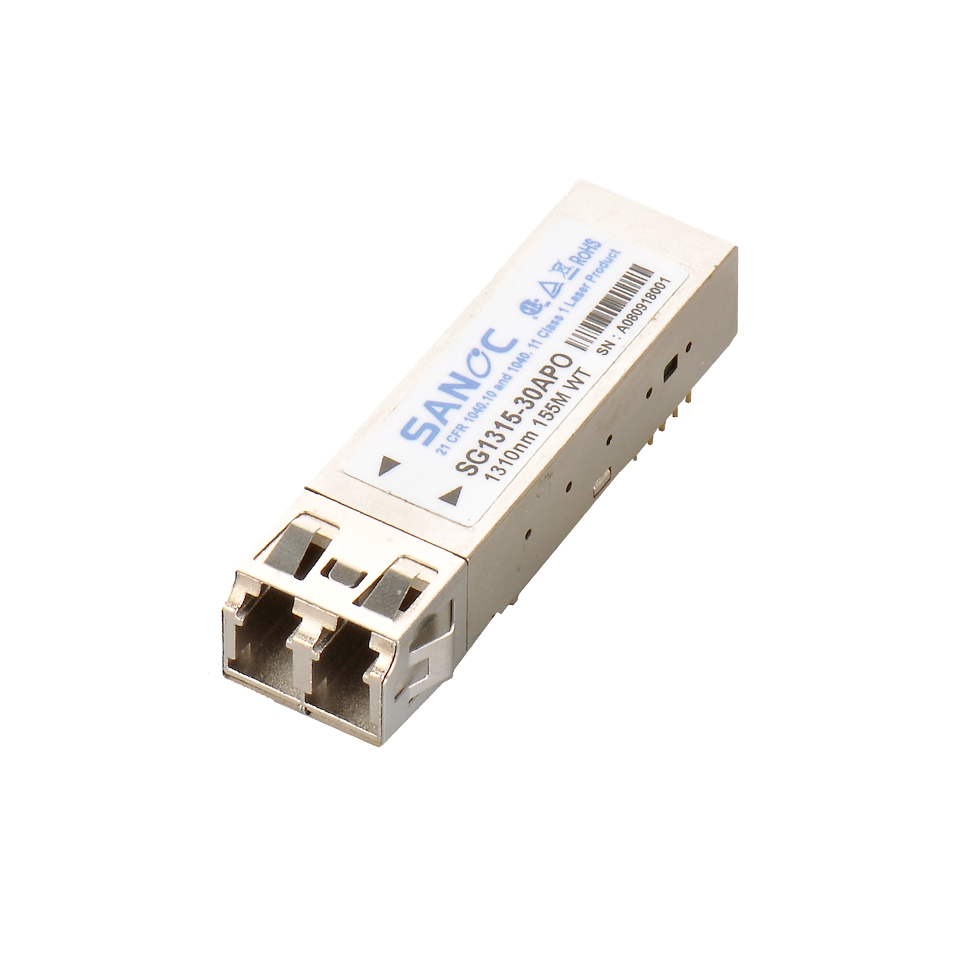

OPTICAL TRANSCEIVER SFF Optical Transceiver

155M SFF

Part Number

SG3015-02ARXX-WT

SG1315-30XXXX-WT

SG1515-20XXXX-WT

SG1515-80XXXX-WT

SG1515-00XXXX-WT

SG1515-12XXXX-WT

Quantity

Specification

Part Number	Data Rate	Distance	Wavelength	Connector	Output Power	Sensitivity	Temperature	Remark
SG3015-02ARXX	125/155 M	2km	1300nm	LC	-8 to -20 dBm	-32 dBm	0 ~ 70°C
SG3015-02ARXX-WT	125/155 M	2km	1310nm	LC	-10 to -20 dBm	-31 dBm	-40 ~ 85°C
SG1315-30ARXX	125/155 M	30km	1310nm	LC	-8 to -15 dBm	-34 dBm	0 ~ 70°C
SG1315-30XXXX-WT	125/155 M	30km	1310nm	LC	-8 to -15 dBm	-34 dBm	-40 ~ 85°C
SG1515-20XXXX	125/155 M	20km	1550nm	LC	-8 to -15 dBm	-34 dBm	0 ~ 70°C
SG1515-20XXXX-WT	125/155 M	20km	1550nm	LC	-8 to -15 dBm	-34 dBm	-40 ~ 85°C
SG1515-80XXXX	125/155 M	80km	1550nm DFB	LC	0 to -5 dBm	-34 dBm	0 ~ 70°C
SG1515-80XXXX-WT	125/155 M	80km	1550nm DFB	LC	0 to -5 dBm	-34 dBm	-40 ~ 85°C
SG1515-00XXXX	125/155 M	100km	1550nm DFB	LC	2 to -3 dBm	-34 dBm	0 ~ 70°C
SG1515-00XXXX-WT	125/155 M	100km	1550nm DFB	LC	2 to -3 dBm	-34 dBm	-40 ~ 85°C
SG1515-12XXXX	125/155 M	120km	1550nm DFB	LC	5 to 0 dBm	-34 dBm	0 ~ 70°C
SG1515-12XXXX-WT	125/155 M	120km	1550nm DFB	LC	5 to 0 dBm	-34 dBm	-40 ~ 85°C
